Energy Storage Lifepo4 Battery 5kwh 7Kwh 10Kwh 12Kwh 15KWh 18Kwh Home Power Storage Solar Wind Power System Power Brick Battery
1.Based on the original cabinet-type solar energy storage battery, ESS adopts the latest ESS battery system. According to market
demand, this type of energy storage battery with high energy density, space saving and powerful power was developed. 2. energy
storage bricks are stacked in parallel with 2units or 6UNITS batteries. In the process of power transmission, power consumption is
reduced. 3.Fully retain the use of load power. 4.The battery cell uses the best safety 5.LiFePO4 battery to save costs. This
energy storage system (ESS) provides high-efficiency power regulation capabilities, and its applications include power demand
management, power dispatch, and renewable energy. Residential, school, commercial and public utility applications.
Products Description
----------------------------------------------------------
Household Stackable Modular 51.2v 10kwh 20kwh 30kwh 40kwh Lifepo4 Lithium Ion Solar Home System Energy Storage Battery
1.Based on the original cabinet-type solar energy storage battery, ESS adopts the latest ESS battery system. According to market
demand, this type of energy storage battery with high energy density, space saving and powerful power was developed. 2. energy
storage bricks are stacked in parallel with 2units or 6UNITS batteries. In the process of power transmission, power consumption is
reduced. 3.Fully retain the use of load power. 4.The battery cell uses the best safety 5.LiFePO4 battery to save costs. This
energy storage system (ESS) provides high-efficiency power regulation capabilities, and its applications include power demand
management, power dispatch, and renewable energy. Residential, school, commercial and public utility applications.
Products Description
----------------------------------------------------------
Household Stackable Modular 51.2v 10kwh 20kwh 30kwh 40kwh Lifepo4 Lithium Ion Solar Home System Energy Storage Battery

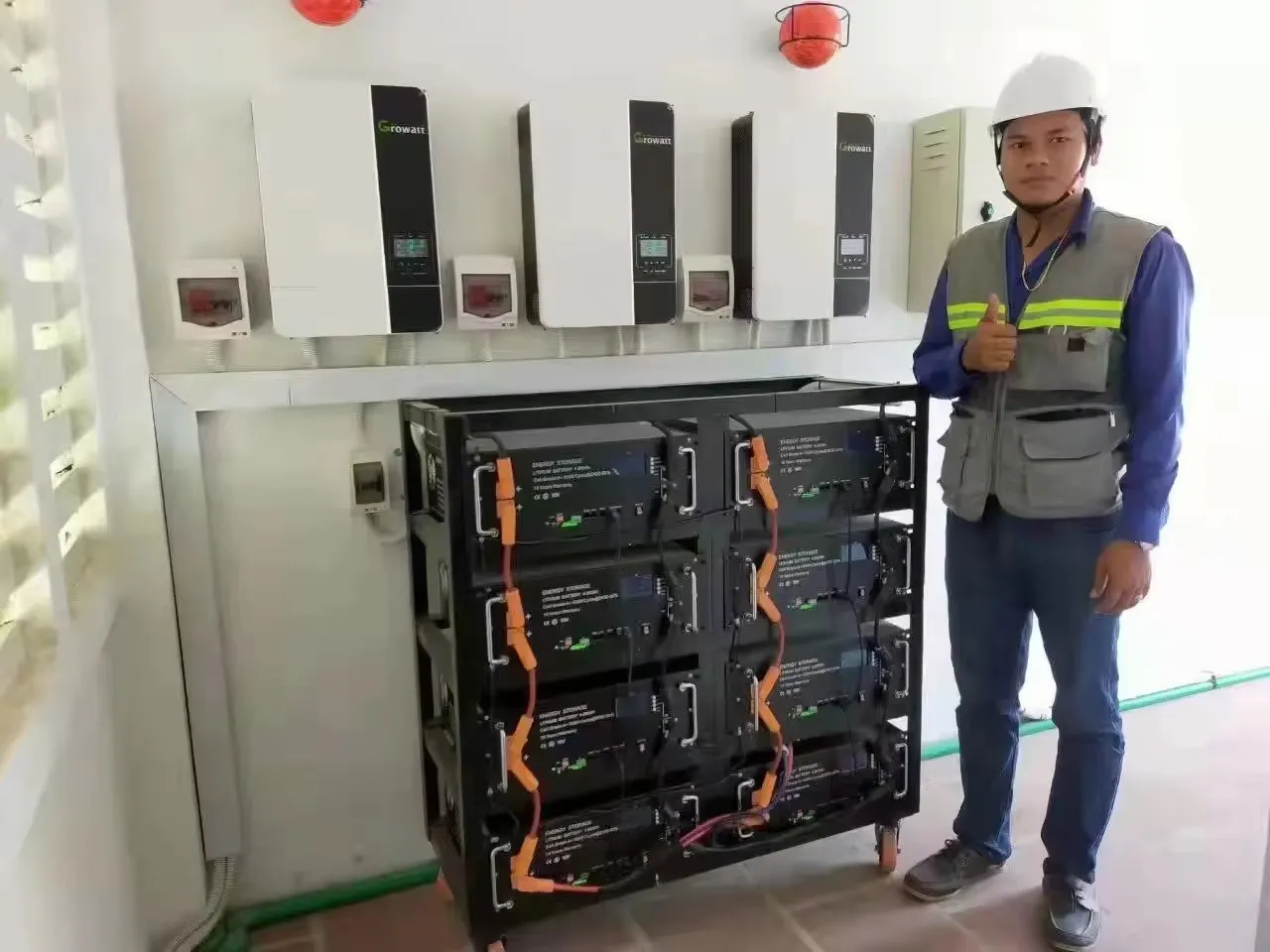

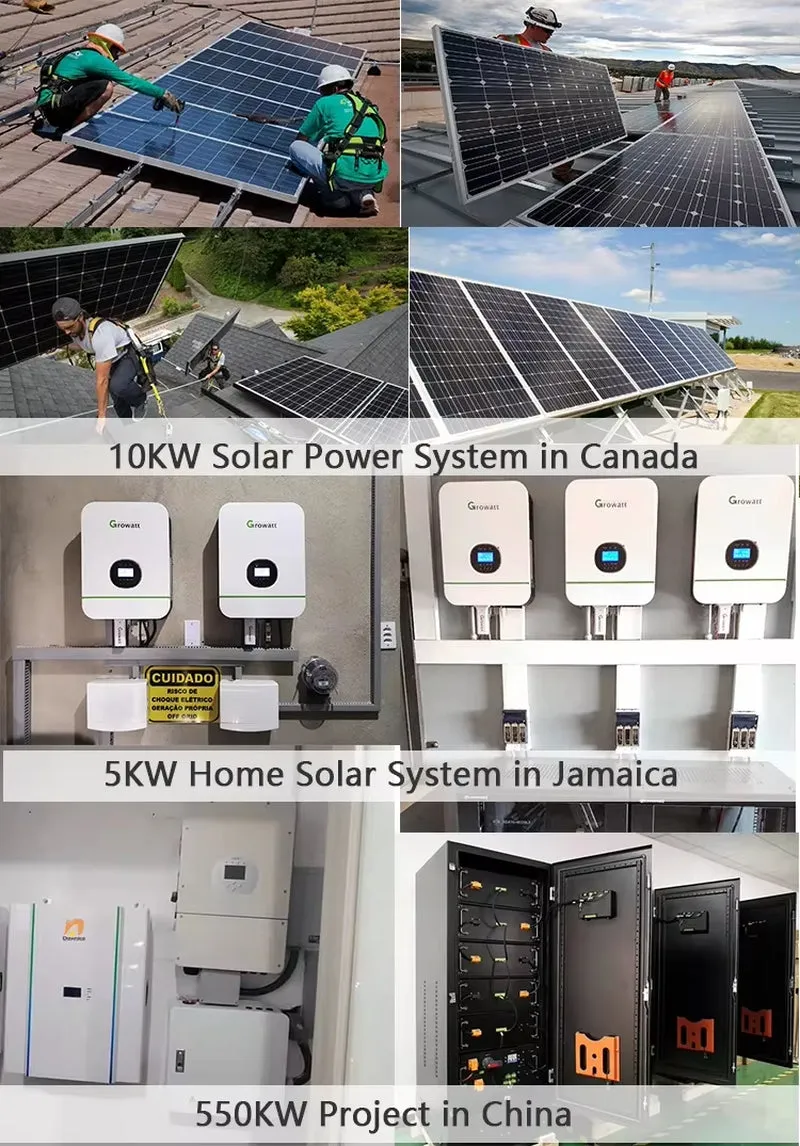

Installation Project
| PERFORMANCE SPECIFICATIONS | ||||
| Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-15 | HZEB-LCT-16 |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Cell model/configuration | 3.2V100Ah/16S1P | 3.2V206Ah/16S1P | 3.2V280Ah/16S1P | 3.2V314Ah/16S1P |
| Capacity(Ah) | 100Ah | 206Ah | 280Ah | 314Ah |
| Rated Energy(kwh) | 5.12kwh | 10.55kwh | 14.34kwh | 16.076kwh |
| Max.Charge/Discharge Current(A) | 50A/50A | 100A/100A | 100A/100A | 100A/100A |
| Voltage Range(Vdc) | 44.8-57.6V | |||
| Scalability | Up to 6 parallel | |||
| Communication | RS232-PC,RS485(B)-BAT RS485(A) | |||
| Cycle Life | ≥6000Cycles | |||
| Design Life | ≥15Years(25℃) | |||
| MECHANICAL SPECIFICATIONS | ||||
| Weight(Net/gross)(KG) | 58.2/65kg | 96.05/102kg | 122/135kg | |
| Dimension(W/D/H)(mm) | 645*440*193 | 620*461*284 | 765*461*284 | |
| Installation Mode | Wall mounted | |||
| IP Grade | IP54 | |||
| SECURITY AND CERTIFICATION | ||||
| Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | |||
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||
| Protection | BMS,Breaker | |||
| ENVIRONMENTAL SPECIFICATIONS | ||||
| Operating temperature(℃) | Charge 0℃_50℃;discharge -10℃_50℃ | |||
| Altitude(m) | ≤2000 | |||
| Humidity | ≤95%(Non-condensing) |
